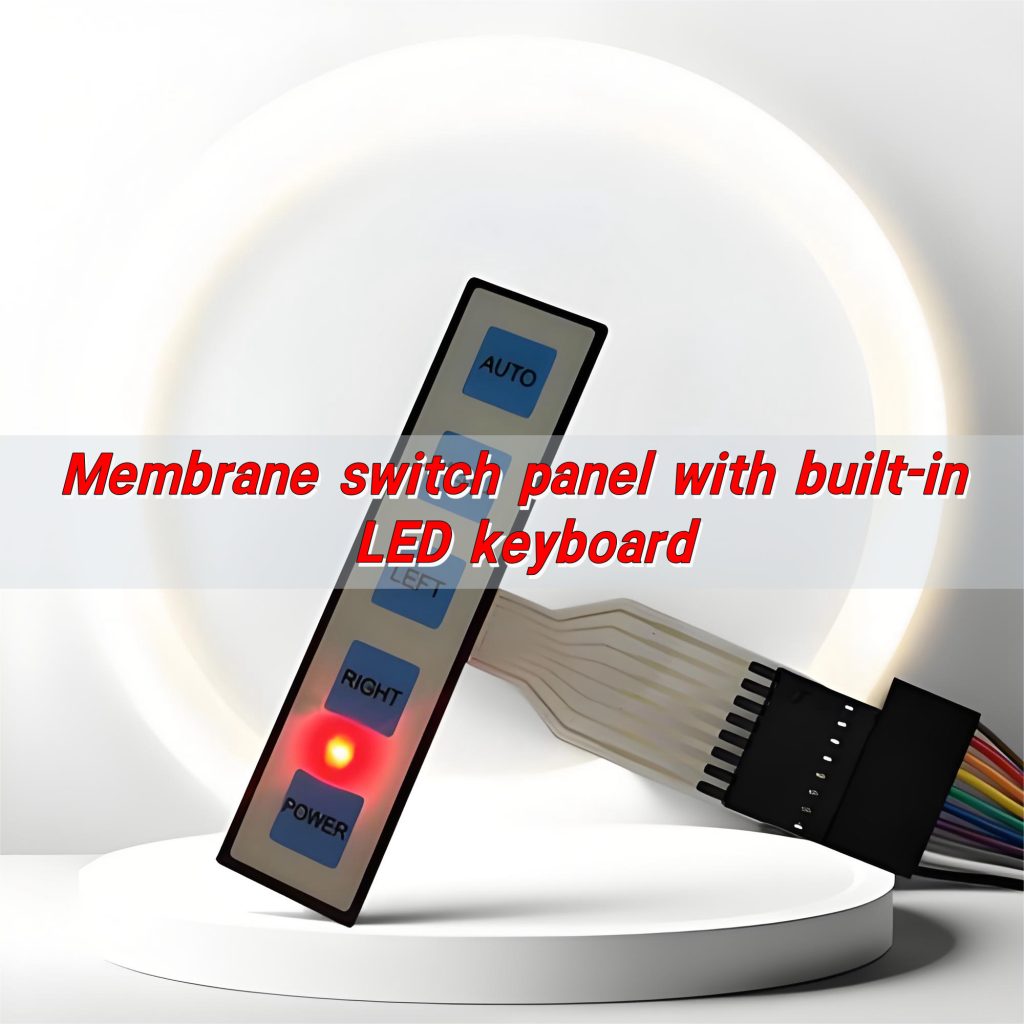

Membrane Switch Panel with Built-in LED Keyboard

What Is a Built-in LED Keyboard?

A built-in LED keyboard is more than just a control interface—it’s the fusion of tactile feedback, lighting technology, and visual appeal. Instead of relying on external illumination, each key is integrated with its own LED source, creating a self-lit surface that glows precisely where you touch.

This structure is widely seen in modern industrial devices, medical systems, and commercial control panels. It provides not only operational clarity in dim environments but also a sleek, futuristic appearance.

Unlike traditional mechanical keyboards, the built-in LED design is housed within a thin, flexible membrane layer. The LEDs are embedded under the graphic overlay or circuit layer, ensuring a clean and durable layout. With uniform light diffusion, users can easily identify keys, even in complete darkness.

What makes it special is its ability to merge function and aesthetics. It’s not simply about lighting—it’s about guiding the user visually while enhancing usability.

How Does a Membrane Key Switch Light Up?

A membrane key switch lights up through a clever combination of conductive layers, light guides, and embedded LEDs. When a user presses a key, the top layer flexes and contacts the circuit layer beneath it, triggering an electronic signal.

The LED placed near or under the switch then illuminates that key. In more advanced designs, light diffusers or fiber optics distribute brightness evenly across the surface. Some keyboards integrate side-firing LEDs that emit light horizontally, giving a softer and more uniform glow.

The construction is precise. Each layer—the top graphic overlay, spacer, circuit, and backlight—works harmoniously. The transparent window in the overlay directs the light upward, allowing the user to see the symbol clearly.

This method makes membrane switch with LED panels ideal for devices that operate in dark or low-light environments. Medical instruments, security panels, and industrial control systems often rely on such illuminated keypads for fast and error-free operation.

Why Use a Membrane Keyboard Build with LEDs?

A membrane keyboard build with LEDs offers more than illumination—it adds sophistication, clarity, and extended usability. In many professional settings, visibility directly affects accuracy.

Another advantage lies in energy efficiency. LED lighting consumes little power and produces minimal heat, which is essential for compact electronic devices. The slim design of a membrane switch easily accommodates low-profile LED modules without adding bulk.

Aesthetically, LED integration transforms a plain panel into an interactive interface. Customizable lighting colors can define zones, show system status, or even indicate warnings. For example, green for “ready,” red for “error,” or blue for “active.”

From industrial machinery to wearable medical instruments, membrane keypads with LEDs deliver the right blend of performance and style. It’s not just a visual upgrade—it’s an enhancement of the user experience.

Membrane Switch with LED — Pros and Cons

• Pros:

Membrane switches with LED backlight provide outstanding visibility in all environments. Their slim, sealed structure makes them dustproof and moisture-resistant, perfect for tough industrial applications. They can also be customized easily—key shape, backlight color, and symbol layout can all be tailored to project needs.

LEDs last thousands of hours, ensuring stable brightness without frequent replacements. Because of their low power draw, they also support battery-operated devices. The smooth surface is easy to clean and can even be made antibacterial for medical equipment.

• Cons:

Membrane switches, being flexible, may lack the mechanical “click” preferred by some users. Over time, exposure to extreme heat might reduce the brightness of certain LEDs if not well managed.

Overall, the benefits of integrating LEDs far outweigh the minor drawbacks. When quality engineering meets thoughtful design, a membrane switch with LED becomes both reliable and visually appealing.

How Do Built-in LED Keyboards Work at Night?

Built-in LED keyboards shine—literally—when the lights go out. Each key contains a dedicated light source or shares illumination from nearby LEDs through light-guiding layers. The transparent or translucent legends on each key allow light to pass through, creating a glowing outline that’s easy to read in darkness.

Unlike conventional external lighting, LED keyboards provide direct illumination exactly where needed. No shadows. No uneven brightness. Just consistent glow.

In aviation control, medical monitoring, or outdoor kiosks, this feature plays a vital role. The light helps reduce eye strain and improves hand-eye coordination, especially during long shifts.

Adjustable brightness levels and color options make the user interface adaptable and comfortable for every environment.

Can a Membrane Switch with LED Be Customized?

Absolutely. Every membrane switch with LED can be tailored in terms of color, brightness, shape, and layout. From single-color white backlighting to multicolor RGB illumination, designers can express branding, functionality, or even personality through lighting effects.

Customization starts from the membrane keypad design. Engineers decide where LEDs are placed, how light spreads, and which symbols or icons should glow. The graphic overlay can include transparent or diffused sections, depending on how much light should pass through.

For medical devices, a soft blue backlight brings a calming effect. For industrial control panels, bright white or red improves visibility. Some customers request zone lighting, where only specific areas illuminate based on operating mode.

The choice of materials also matters. The overlay film, adhesive layers, and circuit materials determine tactile response and durability.

How to Test a Membrane Switch with LED Reliably?

Testing is crucial to ensure long-term reliability. Each membrane keyboard switch goes through several stages of inspection. The first step is continuity testing, confirming that every circuit connection works as intended when pressed. Engineers check for stable resistance and accurate response times.

Next comes illumination testing. The LEDs are powered to measure brightness, uniformity, and color consistency. Any sign of flicker or dim areas indicates alignment or diffusion issues that must be corrected.

Environmental tests follow—temperature cycling, humidity exposure, and vibration tests simulate real-world conditions. These verify that the adhesive layers and light components can withstand aging and stress.

Visual inspection under both light and dark conditions ensures that legends are clearly visible. The tactile feel of each button is also evaluated for consistency.

Professional manufacturers use automated testing equipment to guarantee accuracy. At this stage, defective units are filtered out, leaving only panels that meet high quality standards.

When you receive a membrane switch with LED backlight, every key has already passed a series of demanding trials to ensure flawless operation in the field.

How Long Do Built-in LED Membrane Switches Last?

On average, these keypads can withstand up to one million actuations per key, depending on design and materials. LEDs themselves have lifespans that exceed 50,000 hours—sometimes even longer.

The sealed membrane structure resists dust, liquids, and chemicals. Because the surface has no open gaps, it prevents dirt from entering, maintaining stable performance even in harsh conditions.

Another key factor is material selection. Polyester and polycarbonate overlays provide excellent resilience while maintaining print clarity. With proper care and moderate operating temperatures, an LED membrane switch can function flawlessly for years.

Even after long-term use, the lighting remains consistent, and tactile feedback stays intact. The flexible design absorbs pressure evenly, avoiding wear on specific points.

For companies seeking lasting value, these features translate to fewer replacements, reduced maintenance costs, and dependable operation under all circumstances.

Conclusion:

Built-in LED keyboards represent a new level of intelligent interface technology. Whether used in consumer electronics, industrial control, or medical applications, their illuminated design enhances both aesthetics and function.

At Yu An Electronics, we specialize in crafting high-quality membrane switches, backlit keypads, and custom control panels that meet the most demanding industrial and medical standards.

If you’re seeking a reliable supplier for membrane switch panels with built-in LED keyboards, we’re ready to support your next project with professional expertise and competitive pricing.

Contact us today at sales@best-membraneswitch.com
