A multilayer touch panel membrane switch assembly for particular application as a membrane control panel for Industrial Equipment and Medical Equipment. The front panel is a smooth surface or matt surface with no exposed area causing metalic surfaces to momentarily make contact, lighting a LED indicator located behind transparent areas in the membrane panel. A membrane keypad having the desired flexibility and having excellent memory characteristics is used to transfer the pressure to close the electrical contacts. The front panel and membrane switches may be inexpensively manufactured using printed circuit techniques and flow soldering operations.

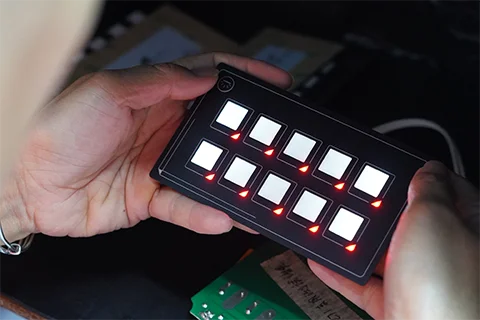

LED membrane switch, just as its name implies, it is a tactile switch that mounted with LED chips on the circuit layer. It is composed of six layers like other products, and designers can choose the LED that they want, including the LED colors, brands, dimensions and so on.

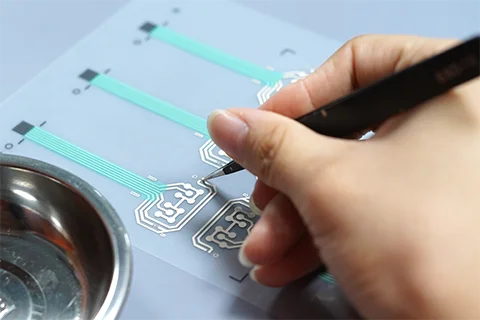

In the LED tactile membrane switch manufacturing, the mounting process is after circuit printing, and then put the metal dome onto the circuitry layer. This is the only difference between normal PET membrane switch fabrication.
LED membrane switch can be seen as one of backlighting switch types. The LED chips are always popular due to its small volume, long lifetime and energy saving. Its cost-effectiveness and straightforward manufacturing process make it a preferred choice compared to alternative backlighting products.
Different with the rubber buttons on the rubber membrane switches, the LED membrane switch replace it by the LED window/dome emboss. Emboss refers to an extreme small pot on the surface of switch, and it gives the protruding feeling when touch it. Emboss always distribute on the top of metal dome and LED chips, makes the user easily recognize it by touching. The emboss points also provides indication for blind people or when the membrane switch is used in night or dark conditions.
Design guides about LED membrane switches
LED membrane switches are a user interface that combines membrane switch technology with light-emitting diodes (LEDs). Due to their flexibility, durability, and cost-effectiveness, membrane switches are commonly used as user interfaces in a variety of electronic devices, appliances, and control panels. The integration of LEDs in membrane switches adds visual indicators that enhance the user experience and provide feedback.
Advantages of a LED membrane switch
 |
 |
 |
 |
| Customization | Easy to Cleaning | Energy Efficiency | Easy Install with Devices |
LED membrane switches allow for a high degree of customization in terms of design,shape,and sppearance. Designers can easily incorporate variors colors,and graphics to meet specific branding or other requirements.
The sealed nature of membrane switches makes them easy to clean. This is particularly useful in applications where hygiene and dust are important,such as in medical devices or industrial equipment.
LED lights are energy-efficient, consuming less power than traditional light sourxes. Mounted LEDs into membrance switches allows for the integration of backlighting without significantly increasing power consumption.
LED membrane weitches are compatible with electronic components, allowing for seamless integration into electronic systems. This makes them suitable for a wide range of applications,from consumer electronics to industrial controls.
LED Membrane Switch in Aerospace Control Panel
The cutting-edge LED membrane switch technology, renowned for its innovative applications, has extended its capabilities to the aerospace industry, where precision, durability, and visibility are paramount. Seamlessly integrating LED with membrane switches, this technology proves to be a game-changer for aerospace control panels.
LED Membrane Switch in Professional Photography Equipment
LED membrane switches, combining the flexibility of printed circuits with the illuminating properties of LED lights, find versatile applications in various components of professional photography equipment, offering a range of benefits that cater to the unique needs of photographers and imaging professionals.
LED Membrane Switch for LCD Screen
LED membrane switch is to assemble one or several LED chips on the switch traces as the backlighting element, to achieve the lighting of the interface. The switch operates by creating a connection when pressure is applied to the membrane layer, causing a circuit to close and register a keystroke or command. Membrane switches are ...
LED Tactile Switch for Telecommunication Machine
The LED membrane switch incorporates a layer of light guide film as the backlighting element to illuminate the interface. Activation occurs when pressure is applied to the membrane layer, closing the circuit and registering a keystroke or command. Widely employed in electronic devices requiring uniform lighting, such as control panels, keypads, and remote controls, membrane ...
