LGF Tactile Membrane Switch for Medical

An LGF membrane switch is a user interface technology that combines Light Guide Film (LGF) with a membrane switch. It uses the LGF to evenly distribute backlighting across the switch, providing uniform illumination for the control panel. This technology is often used in devices like keypads, control panels, and user interfaces, offering a visually appealing and functional solution for low-light environments.

  • Panel material:PVC, PC, PET

  • Insulation resistance:>=100VDC

  • Rebound time:<=6ms

  • Loop resistance:≤80Ω (within 40cm of a single key return route)

  • Reliable life cycle:>100times

  • Trip force:160~450g

LGF Membrane Switch Specification
Panel size 114.6mm*58.6mm

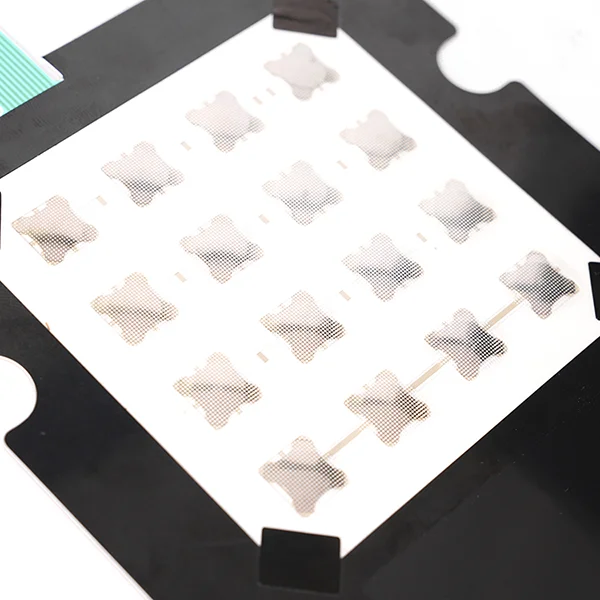

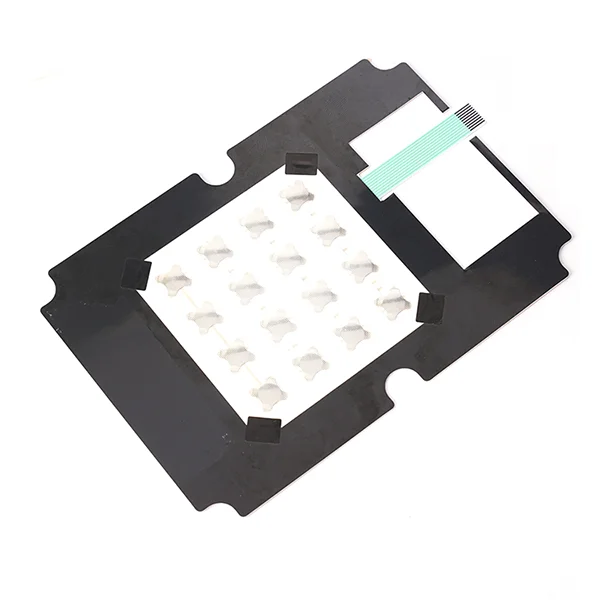

Metal dome 6*20mm, 1*16mm
Overlay spacer 0.13mm (3M468)
Dome carrier 0.1mm (PET100)
Dome spacer 3M467 + LGF 0.5mm + 3M467
Lower circuit 0.125mm (PET125)

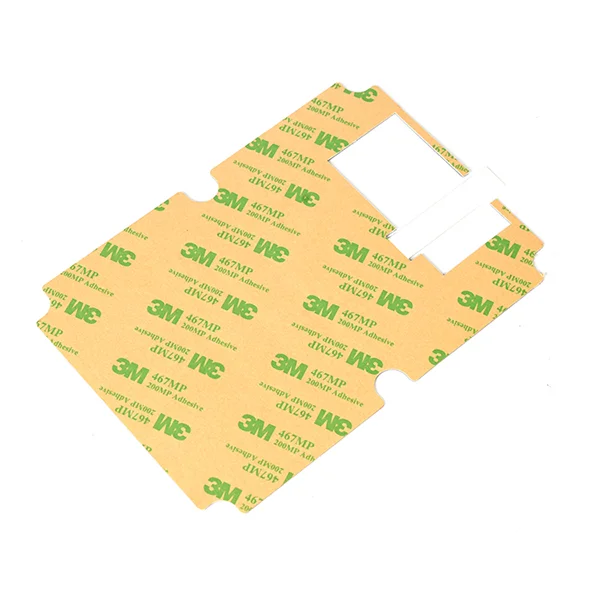

Back adhesive 0.05mm 3M467
LED 1*Bi-color LEDs

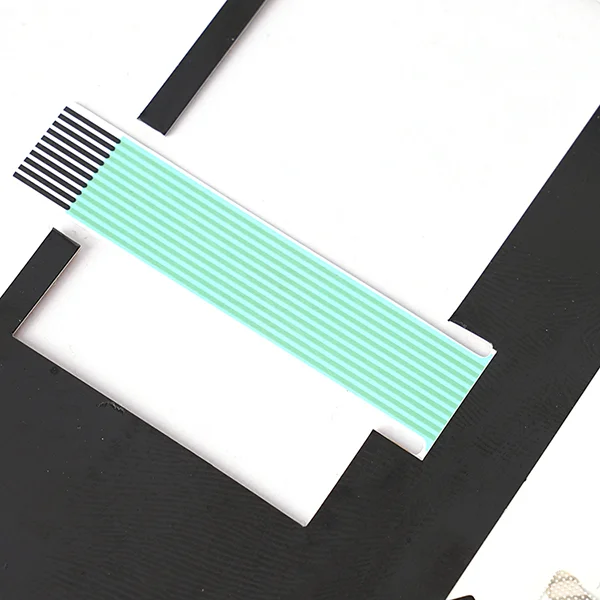

Wire length 40mm
Waterproof class IP65
Connector 1*10ways YD female housing
Total thickness 1.0mm
Uses of LGF Membrane Switch

When selecting LGF membrane switches, it is essential to consider not only their dustproof and waterproof characteristics but also various specifications like heat resistance, durability, and size, to ensure optimal performance across diverse applications.

In the medical field, LGF membrane switches are utilized in medical devices, ensuring user-friendly interfaces for equipment. Their cleanability and resistance to environmental factors making them well-suited for healthcare settings. The devices that require Light Guide Film Membrane Switch are including:

  • The lighting of membrane switch is integrated into the control panels, allowing users to input commands and access various functions with ease.
  • Its backlighting feature ensures the accurate readings and precise adjustments in medical devices, data and controls need to be easily discernible in varying lighting conditions.
  • LGF membrane switches are designed to be easy to clean, contributing to the overall cleanliness and sterility of the equipment. The sealed and flat nature of the membrane switch prevents the ingress of contaminants.
