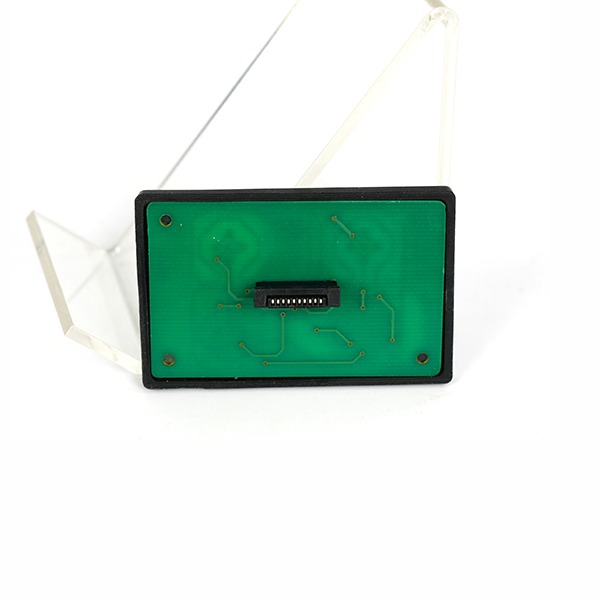

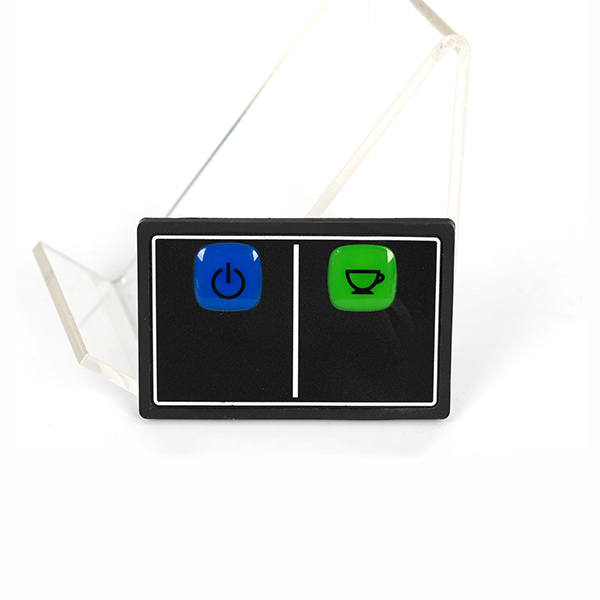

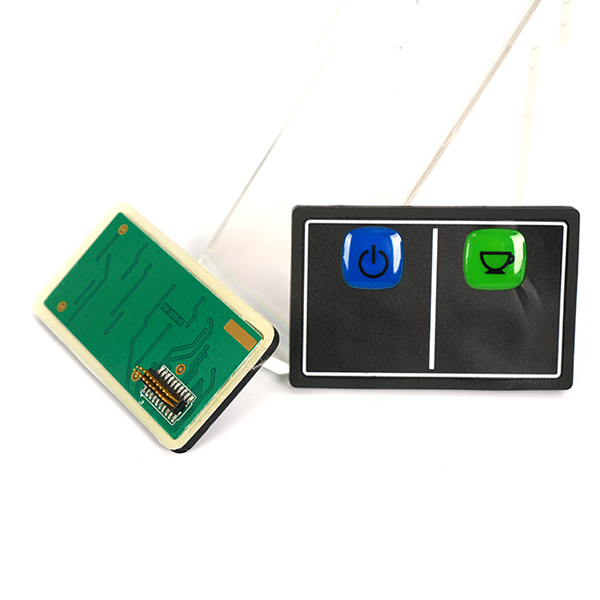

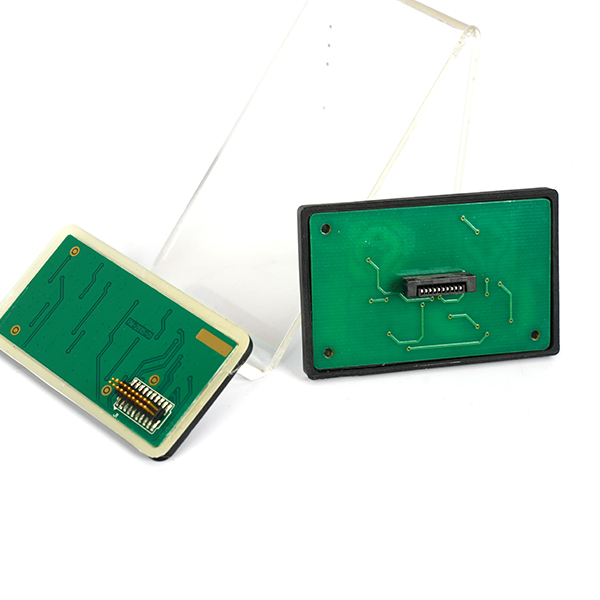

PCB membrane switch
PCB membrane switch
PCB membrane switch
PCB membrane switch

Membrane Switch Assembled with PCB for Consumers

A membrane switch assembled with a PCB (Printed Circuit Board) serves as an advanced interface for various consumer electronics, offering a seamless combination of key functions, visual indicators, and control capabilities. Comprising essential components like the panel, top circuit, isolation layer, and bottom circuit, this integrated system delivers a responsive and durable user experience.

  • Panel Material:PVC, PC, PET

  • Insulation Resistance:>=100VDC

  • Rebound Time:<=6ms

  • Loop Resistance:≤80Ω (within 40cm of a single key return route)

  • Reliable Life Cycle:>100,000 times

  • Actuation Force:160~450g

Basic Parameters of Tactile Membrane Switch
Max. Panel size 600*800mm
Max. Panel size    (with emboss) 400*500mm
Paste silver paste, carbon paste
Ink color red, black, blue, white, yellow, green, purple, etc
Trace width 0.15-0.20mm
LED spec. 0402, 0603, 0805, 1210
Wire length Per customer requirements
Waterproof class IP65
Connector female pin, male pin
Metal dome types triangle, for-legs, circle
Trip force (metal dome) 280g, 340g, 450g
Travel (metal dome) 0.35-0.71
Diameter (metal dome) 8.4mm, 10mm, 12.2mm
Surface treatment  (metal dome) gold plating, nickle plating, stainless
Back adhesive DSMS, 3M, SOKEN
Citcuit board option FPC, PCB, Aluminum
Panel material PET, PC, TPU, PMMA
Applications of PCB Membrane Switch in Consumer Electronics

The PCB membrane switch is a versatile solution widely employed in consumer electronic devices. Consisting of layers including a top graphic overlay, a spacer layer, and a bottom circuit layer, it ensures a slim profile, durability, and resistance to environmental factors.

The graphic overlay, featuring printed symbols or graphics representing the keys, is the visible layer. Key functions are achieved through conductive traces on the bottom circuit layer. When a key is pressed, the layers make contact, completing the circuit and registering the keypress.

These membrane switches are commonly utilized in devices such as remote controls, medical equipment, and various consumer electronics where a compact and reliable keypad is essential.

Detail Description

Client Profile:

ABC Electronics, a prominent player in the consumer electronics industry, approached Yu An Electronics with a vision to elevate the user interface of their latest smart home device. They sought to address challenges related to tactile precision, durability, and overall user-friendly design.

Project Challenges:

ABC Electronics faced challenges in optimizing the interface for improved user experience. The design needed to address issues such as tactile precision for accurate inputs, durability to withstand daily usage, and a user-friendly layout for seamless interaction. Additionally, the solution had to be adaptable to the diverse range of consumer environments.

Our Solutions:

In collaboration with ABC Electronics, Yu An Electronics introduced a tailored solution using PCB membrane switches. These switches were designed with advanced features to meet the specific challenges posed by consumer electronics. The focus was on providing precise tactile feedback, ensuring accurate inputs for enhanced user interaction.

Engineered for durability and resistance to environmental factors, the PCB membrane switches seamlessly integrated technology with reliability. The collaborative design process between Yu An Electronics and ABC Electronics resulted in a customized solution finely tuned to the requirements of the smart home device.

Customer’s Feedback:

Following the implementation of Yu An Electronics PCB membrane switches into their smart home device, ABC Electronics reported a significant improvement in overall performance and user satisfaction. Users appreciated the precise tactile response, durability, and the switches’ ability to deliver reliable performance in diverse consumer environments. The successful integration set a new standard for user interfaces in consumer electronics, showcasing the potential for future innovations in the industry.
