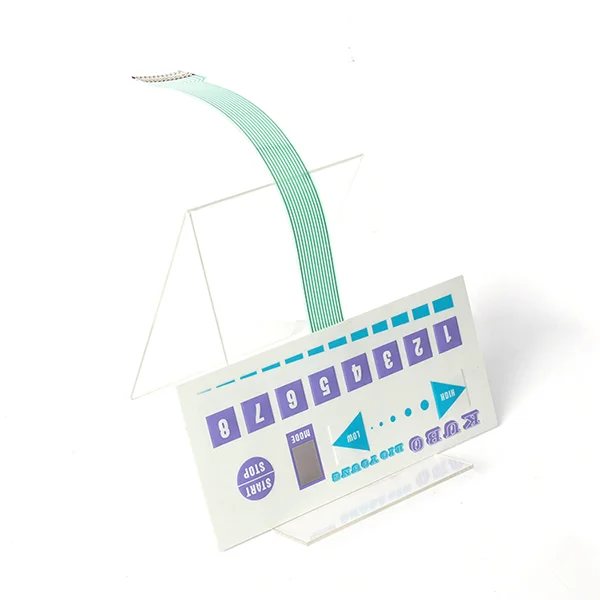

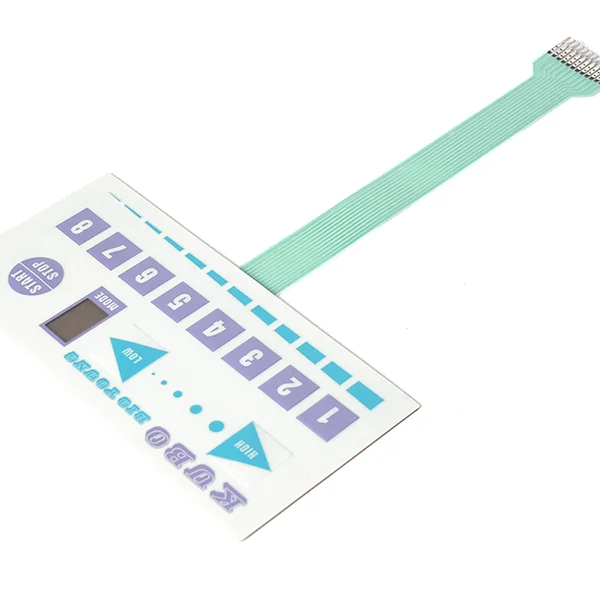

PET Membrane Switch for Keypad

A PET membrane switch is an innovative user interface technology that incorporates Polyethylene Terephthalate (PET) film into a membrane switch. This technology utilizes PET to provide a durable and flexible base for the keyboard, ensuring a reliable and responsive user experience. PET membrane switches are commonly used in keyboards, keypads, and control panels, offering a sleek and functional solution for various applications.

  • Panel Material:PET

  • Insulation Resistance:>= 100VDC

  • Rebound Time:<= 6ms

  • Loop Resistance:≤ 80Ω (within 40cm of a single key return route)

  • Reliable Life Cycle:> 100,000 times

  • Actuation Force:160~450g

Basic Parameters of PET Membrane Switch
Max. Panel size 600*800mm
Max. Panel size    (with emboss) 400*500mm
Paste silver paste, carbon paste
Ink color red, black, blue, white, yellow, green, purple, etc
Trace width 0.15-0.20mm
LED spec. 0402, 0603, 0805, 1210
Wire length Per customer requirements
Waterproof class IP65

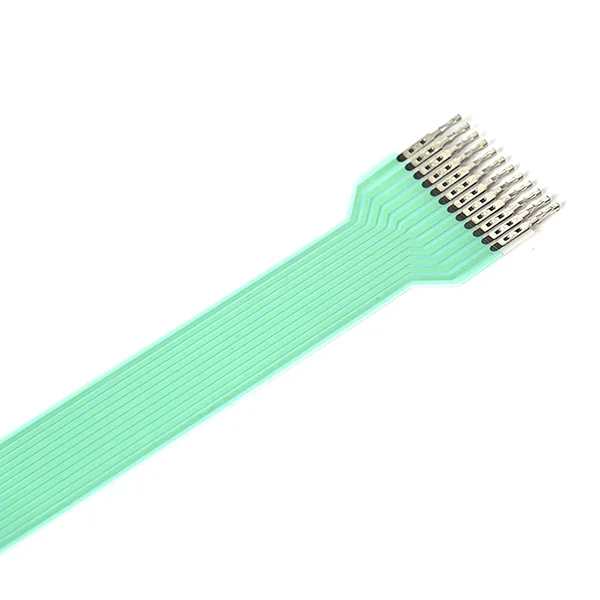

Connector female pin, male pin
Metal dome types triangle, for-legs, circle
Trip force (metal dome) 280g, 340g, 450g
Travel (metal dome) 0.35-0.71
Diameter (metal dome) 8.4mm, 10mm, 12.2mm
Surface treatment  (metal dome) gold plating, nickle plating, stainless
Back adhesive DSMS, 3M, SOKEN
Citcuit board option FPC, PCB, Aluminum
Panel material PET, PC, TPU, PMMA
Production Process

Detail Description

Client Profile:

XYZ Tech Solutions, a cutting-edge technology company specializing in high-performance keyboards, approached Alpha Electronics with a vision to redefine the user experience in professional gaming and typing applications. They sought a solution that not only met the demands of durability and precision but also integrated seamlessly into their sleek and modern keyboard designs.

Project Challenges:

XYZ Tech Solutions faced challenges related to the wear and tear of keys, ensuring precise keystrokes, and the integration of backlighting for an enhanced user experience. They required a solution that combined durability with aesthetics to meet the expectations of their tech-savvy customer base.

Our Solutions:

Yu An Electronics collaborated with XYZ Tech Solutions to introduce PET membrane switches into their advanced keyboards. These switches provided the necessary durability and tactile precision, enhancing the overall typing and gaming experience. The incorporation of backlighting features added a modern touch to the keyboards, aligning with XYZ Tech Solutions’ commitment to innovation and user satisfaction.

Customer’s Feedback:

Following the integration of Yu An Electronics PET membrane switches into XYZ Tech Solutions’ keyboards, the client reported a significant improvement in user satisfaction. Gamers and professionals alike appreciated the durability, precise keystrokes, and the modern aesthetic brought by the backlighting features. The collaboration marked a successful step forward in advancing keyboard technology for XYZ Tech Solutions.
