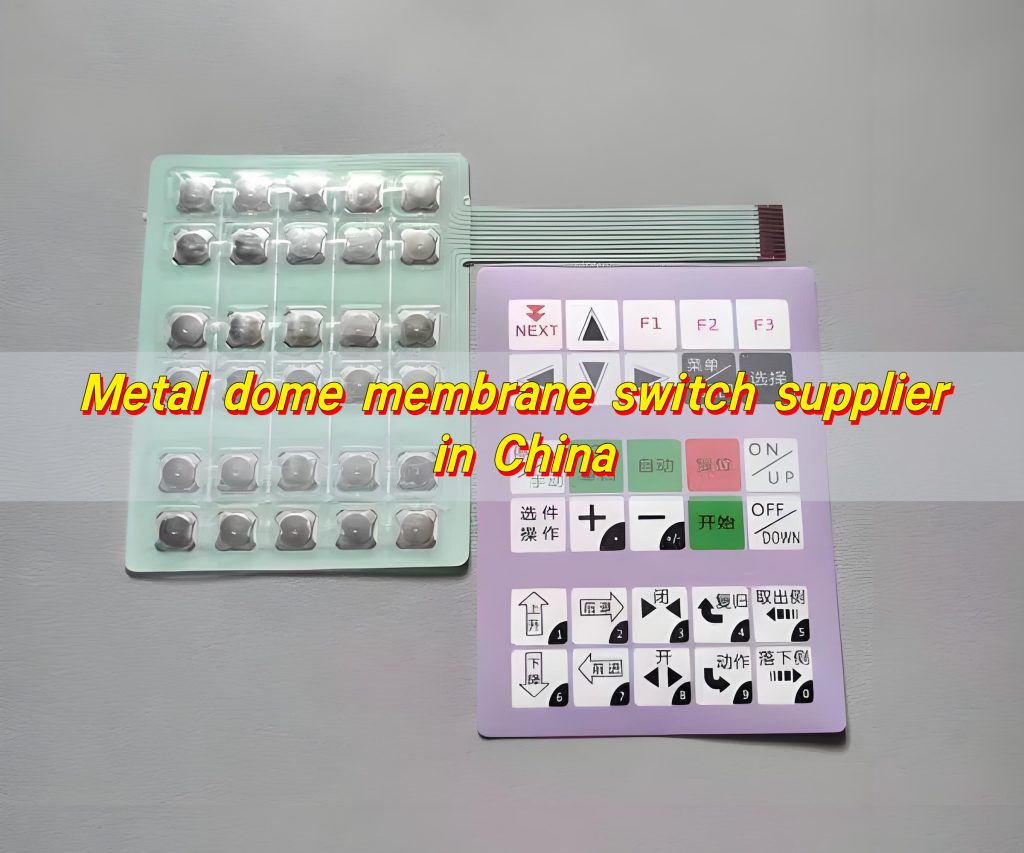

Metal dome membrane switch supplier in China

What is a metal dome membrane switch?

Metal dome membrane switch is a type of momentary switch. It uses a thin stainless-steel dome placed under the top layer of a keypad or circuit. When pressed, the dome flexes, makes contact with the circuit, and completes the electrical path.

Unlike flat membrane switches, the metal dome version gives a clear tactile response. Users feel a crisp “snap” every time they press the button.

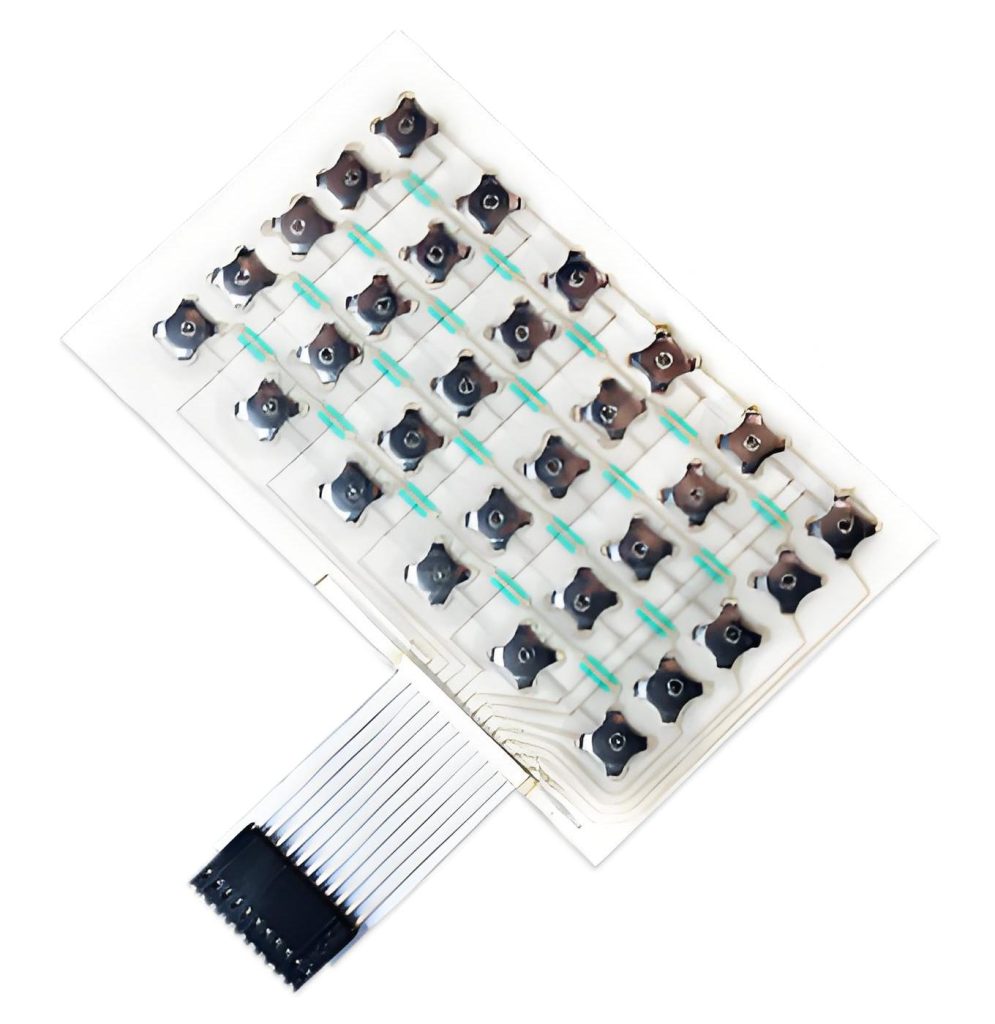

Metal domes come in different shapes and sizes—round, four-leg, oblong, and triangle. Each type is designed to provide a specific actuation force and feedback style. For instance, four-leg domes are often used for precise alignment, while round domes are common in compact devices.

The versatility of these domes makes them suitable for many industries, from medical equipment to consumer electronics.

How does a metal dome membrane switch work?

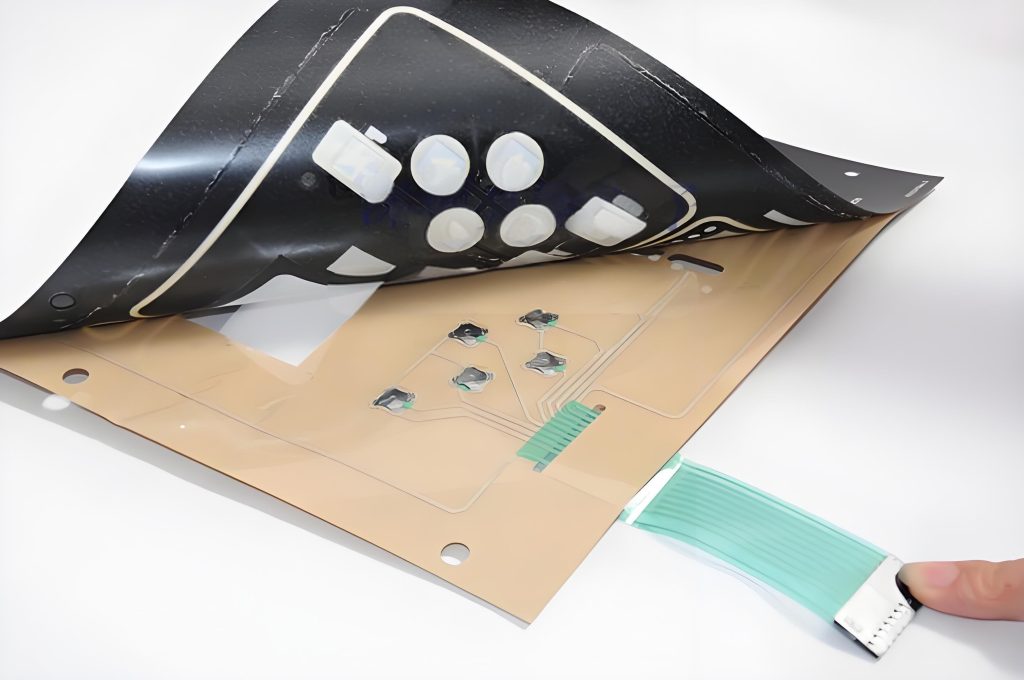

The working principle is simple yet effective. A dome is mounted above a PCB or a flexible film with a conductive trace. A spacer keeps the dome from touching the circuit until pressure is applied.

When a user presses the dome:

• It flexes inward.

• The underside of the dome contacts the conductive pad.

• The circuit is closed, sending a signal.

• When released, the dome springs back, breaking the contact.

The quick return of the dome ensures faster response time compared to flat membrane switches. In devices where precision matters, such as medical monitors or handheld instruments, this tactile confirmation can be critical. It prevents repeated presses.

Why choose metal dome membrane switch suppliers in China?

China is home to some of the world’s top membrane switch manufacturers. Yu An Electronics is chosen for its excellent quality and satisfactory service. Here are the key reasons why many international customers purchase directly from Yu An Electronics, a Chinese supplier:

• 1. Cost-Effective Manufacturing

Yu An Electronics has a strong supply chain for electronic components. Local sourcing of raw materials and high-volume production help reduce costs without compromising quality.

• 2. Advanced Technology

Yu An Electronics use state-of-the-art equipment for metal dome stamping, plating, and assembly.

• 3. Customization Options

Whether you need a dome switch for a medical device, automotive dashboard, or telecom equipment, Yu An Electronics can tailor the shape, size, and actuation force.

• 4. Strict Quality Standards

Reputable suppliers follow international certifications such as ISO9001, RoHS, and REACH.

• 5. Fast Delivery Times

Thanks to well-organized production lines and efficient logistics, Yu An Electronics can meet tight deadlines.

• 6. Strong Export Experience

With years of exporting to North America, Europe, and Asia-Pacific markets, Yu An Electronics understand international requirements and provide smooth support for global customers.

For engineers and buyers, these advantages make China metal dome membrane switch supplier Yu An Electronics a reliable partner for long-term projects.

How to pick the right metal dome membrane switch?

Choosing the right dome switch depends on the application. The following factors should guide your decision:

• Actuation Force: Choose a lighter force for handheld devices and higher force for industrial equipment.

• Size and Shape: Smaller domes fit compact devices, while larger domes give stronger feedback.

• Click Ratio: A higher click ratio gives a sharper snap.

• Durability: Good domes can last over 1 million actuations without failure.

• Environmental Resistance: If the device will be used outdoors or in harsh environments, make sure the domes are resistant to moisture, dust, and temperature changes.

• Assembly Method: Options include adhesive backing, array sheets, or tape & reel packaging for automated placement.

Working with an experienced Yu An Electronics ensures that these factors are carefully matched to your needs.

How do dome membrane switches improve tactile feedback?

Tactile feedback is the biggest advantage of a dome switch. Users not only see that the device is working but also feel it through the crisp snap.

This has several benefits:

• Accuracy: Users know when a button is pressed, reducing accidental double presses.

• Speed: Feedback is immediate, so users can operate devices faster.

• User Satisfaction: The click sound and feel improve the overall experience, making devices more enjoyable to use.

How do membrane dome switches affect device durability?

Durability is another reason why many devices use membrane dome switches. The stainless-steel domes are engineered to withstand repeated pressing without losing their shape.

High-quality domes can handle over 1 million actuations. Some even last longer depending on size and material thickness. The dome’s spring-like action prevents wear and ensures consistent feedback over time.

In addition, because the domes are sealed inside the switch structure, they are protected against dust and moisture. This makes them suitable for outdoor applications or medical devices that require regular cleaning.

Metal dome membrane switch vs. normal membrane switch: what’s the difference?

• Normal Membrane Switch: Uses a flat conductive layer. Pressing does not provide tactile feedback. It feels soft and unresponsive.

• Metal Dome Membrane Switch: Uses a stainless-steel dome. Pressing gives a clear snap and audible click.

The tactile response is the biggest difference. For professional devices where feedback matters, metal domes are the preferred choice.

Another difference is in durability. Normal membrane switches may wear out faster, while dome switches maintain their performance for millions of cycles.

For industries like automotive, medical, and telecom, the metal dome switch clearly offers superior performance.

Where are metal dome membrane switches commonly used?

Because of their versatility, metal dome arrays and switches are found in many industries.

• Medical Devices: Patient monitors, diagnostic instruments, and handheld scanners.

• Automotive: Dashboard controls, car entertainment systems, and keyless entry pads.

• Consumer Electronics: Remote controls, game controllers, and mobile phones.

• Industrial Equipment: Control panels, measuring devices, and factory machines.

• Telecommunication: Walkie-talkies, network devices, and handheld radios.

• Smart Home Devices: Security systems, access control panels, and appliances.

The need for precise tactile feedback and long life cycle makes dome switches the go-to choice for these products.

Conclusion:

Although small, metal dome membrane switches can improve tactile feedback, increase device durability, and enhance the overall user experience.

Working with a metal dome membrane switch supplier in China ensures cost savings, customization, and fast delivery. The advanced technology and strict quality control from Yu An Electronics make them a reliable choice for global companies.
