LGF membrane switch for automotive control panel

With a pursuit to excellence, Yu An Electronics has continually redefined user interfaces and elevated visual experiences. Our advanced LGF membrane switches are designed to meet the highest standards of precision and clarity, making them ideal for professional settings.

  • Actuation Force:Non-tactile 60g-300g; Tactile 150g-450g

  • Switch Travel:Non-tactile 0.1-0.5mm; Tactile 0.6-1.5mm

  • Life Cycle:Non-tactile ≥5 million cycles; Tactile ≥1 million cycles

  • Operating Temperature:-40℃ to +80℃

  • Storage Temperature:-40℃ to +85℃

  • Humidity:40℃, 90%∽95%, 240 hours

LGF Membrane Switch Specification
Panel size 114.6mm*58.6mm
Metal dome 6*20mm, 1*16mm
Overlay spacer 0.13mm (3M468)
Dome carrier 0.1mm (PET100)
Dome spacer 3M467 + LGF 0.5mm + 3M467

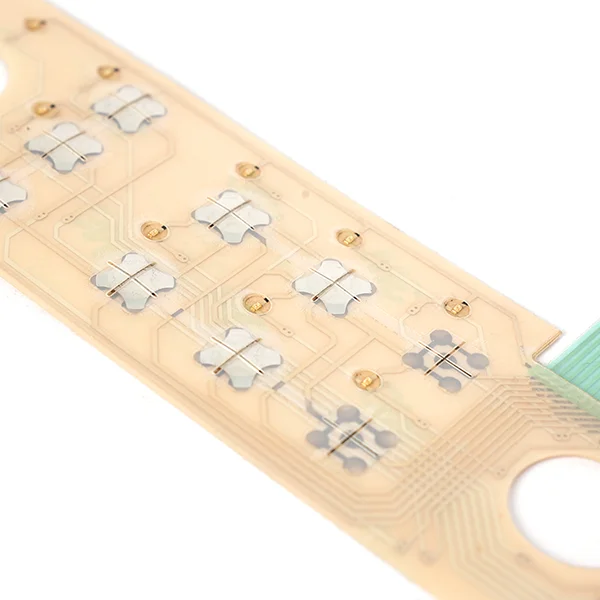

Lower circuit 0.125mm (PET125)

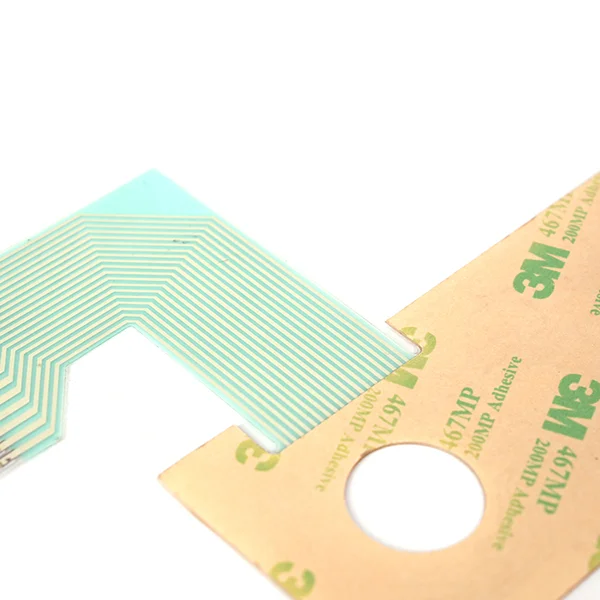

Back adhesive 0.05mm 3M467
LED 1*Bi-color LEDs
Wire length 40mm
Waterproof class IP65

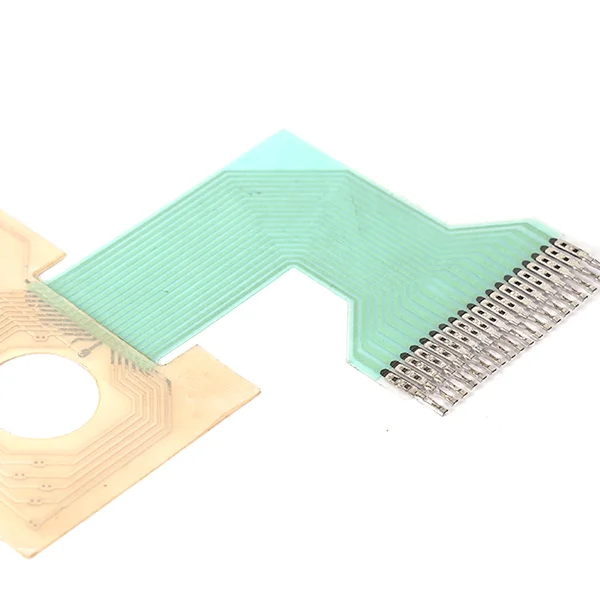

Connector 1*10ways YD female housing
Total thickness 1.0mm
Uses of LGF Membrane Switch

Electrical Characteristics of Tactile Membrane Switches

Voltage Rating: 35V (DC), 100mA, 1W;

Contact Resistance: 10Ω-500Ω (varies with different lead wires and materials used), typically <200Ω;

Insulation Resistance: ≥100MΩ at 100V;

Dielectric Strength: 250V RMS (50-60Hz, 1min), where dielectric strength refers to the maximum voltage a substance can withstand for one minute without breakdown. Exceeding this voltage may cause the material to break down.

Contact Bounce Time: ≤5ms.

Detail Description

Client Profile:

AutoTech Dynamics, a leading automotive manufacturer, sought to enhance the user interface of their vehicles’ dashboard controls. They approached Yu An Electronics with a vision to improve visibility, tactile feedback, and overall user experience.

Project Challenges:

AutoTech Dynamics faced challenges related to outdated controls, visibility issues in varying lighting conditions, and the need for a more responsive interface. The automotive environment demanded a solution that could withstand temperature variations, vibrations, and ensure longevity.

Our Solutions:

Yu An Electronics collaborated closely with AutoTech and recommended the light guide film membrane switch and change the metal dome with more sensitive features. The switches, featuring advanced backlighting for improved visibility and responsive tactile feedback, successfully addressed the client’s challenges. Engineered for durability, the switches met the stringent requirements of the automotive environment.

Customer’s Feedback:

Following the integration of Yu An Electronics LGF membrane switches into the automotive dashboard, AutoTech Dynamics reported a significant improvement in user satisfaction. Drivers appreciated the enhanced visibility, precise control, and the switches’ ability to withstand the rigors of the road. The successful collaboration helps us to establish long-term business trip with AutoTech team, and win numerous membrane switch orders for us.
