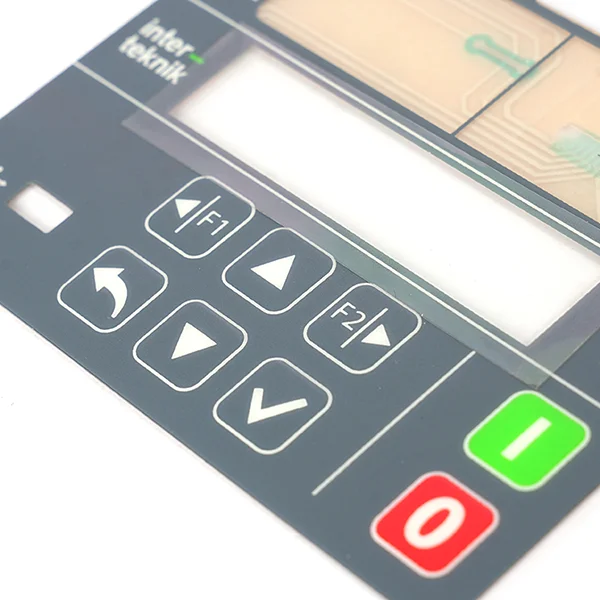

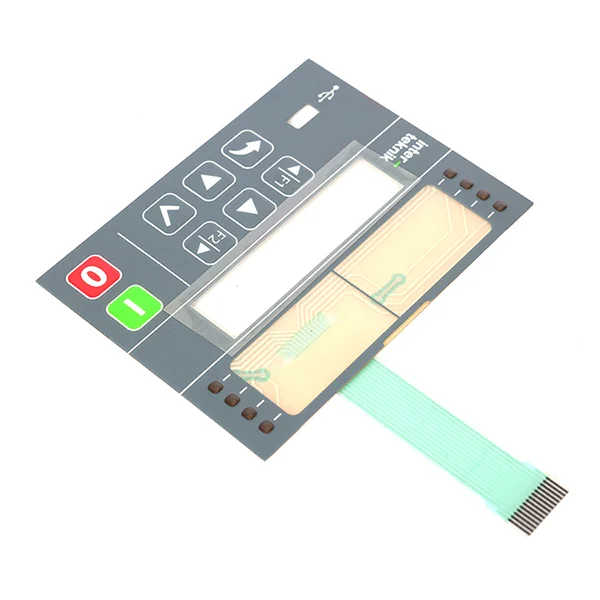

LGF Membrane Switch in LCD Monitor

The LGF membrane switch technology has found innovative applications in the realm of LCD monitors, seamlessly integrating Light Guide Film (LGF) with membrane switches to enhance user interfaces and visual experiences. This technology proves particularly beneficial in environments where precise control and visibility are paramount, such as in the case of LCD monitors used in professional settings.

  • Panel material:PVC, PC, PET

  • Insulation resistance:>=100VDC

  • Rebound time:<=6ms

  • Loop resistance:≤80Ω (within 40cm of a single key return route)

  • Reliable life cycle:>100times

  • Trip force:160~450g

LGF Membrane Switch Specification
Panel size 114.6mm*58.6mm
Metal dome 6*20mm, 1*16mm
Overlay spacer 0.13mm (3M468)
Dome carrier 0.1mm (PET100)
Dome spacer 3M467 + LGF 0.5mm + 3M467
Lower circuit 0.125mm (PET125)

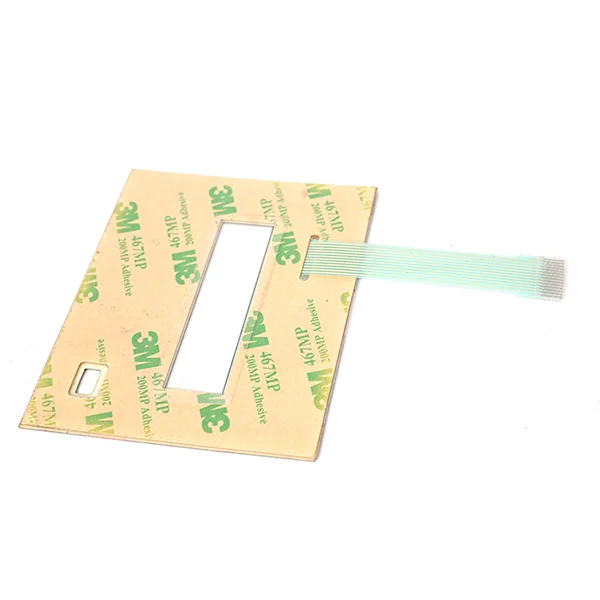

Back adhesive 0.05mm 3M467
LED 1*Bi-color LEDs
Wire length 40mm
Waterproof class IP65
Connector 1*10ways YD female housing
Total thickness 1.0mm
Uses of LGF Membrane Switch

Applications of LGF Membrane Switch in LCD Monitors:

In LCD monitors, LGF membrane switches are employed to improve the functionality and user experience, ensuring efficient control and visual clarity. Some key applications include:

  1. Integrated Backlighting: The LGF technology evenly distributes backlighting across the LCD monitor, providing uniform illumination for the control panel. This integrated backlighting enhances the overall visibility of the monitor, allowing users to navigate and control various functions with ease.
  2. Precision Control: The tactile feedback and responsive nature of LGF membrane switches contribute to precise control in adjusting monitor settings. This is crucial in professional environments where accurate color calibration, brightness adjustments, and other visual parameters are essential.
  3. Durability: The LGF membrane switches are designed for durability, with a reliable life cycle exceeding one million cycles. This ensures long-term performance and reliability, even in continuous and demanding usage scenarios.
  4. Easy Cleanability: The sealed and flat nature of LGF membrane switches facilitates easy cleaning, preventing the ingress of contaminants on the monitor’s control panel. This is particularly important in professional settings where cleanliness is crucial for maintaining equipment functionality.

Detail Description

Client Profile:

TechVision Displays, a leading manufacturer of high-performance LCD monitors for professional applications, approached Nexus Electronics with a vision to elevate their monitor interfaces. They aimed to enhance user control, visibility, and durability in their monitors, addressing the unique challenges posed by professional usage scenarios.

Project Challenges:

TechVision faced challenges related to control precision, visibility under varying lighting conditions, and the need for a durable interface in their LCD monitors. Meeting these challenges required a solution that not only improved the visual experience but also ensured long-lasting performance and ease of maintenance.

Our Solutions:

Our team collaborated with TechVision Displays to implement LGF membrane switches in their LCD monitors. The switches, featuring advanced backlighting, tactile precision, and durability, successfully addressed the client’s challenges. The result was a sophisticated and reliable interface that met the stringent requirements of professional users.

Customer’s Feedback:

Following the integration of Yu An LGF membrane switches into their LCD monitors, TechVision reported a significant enhancement in overall performance and user satisfaction. Professionals in fields such as graphic design and video editing appreciated the improved visibility, precise control, and the switches’ ability to withstand the rigors of professional use. The integration marked a successful collaboration, setting a new standard for user interfaces in high-performance LCD monitors.
