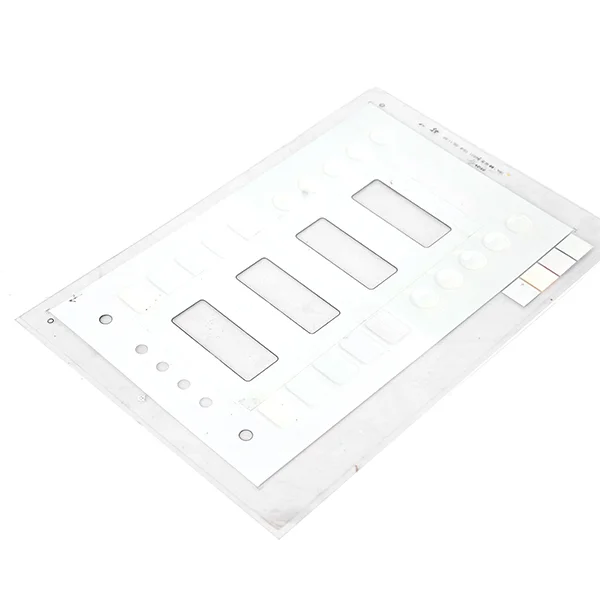

Membrane switch04

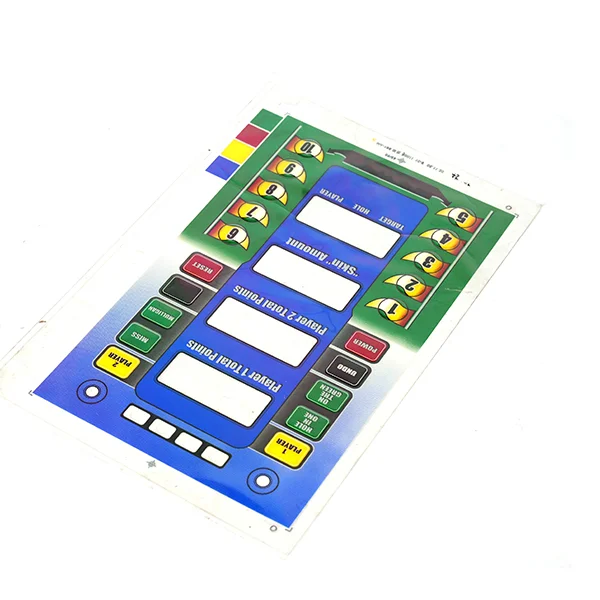

Membrane switch01

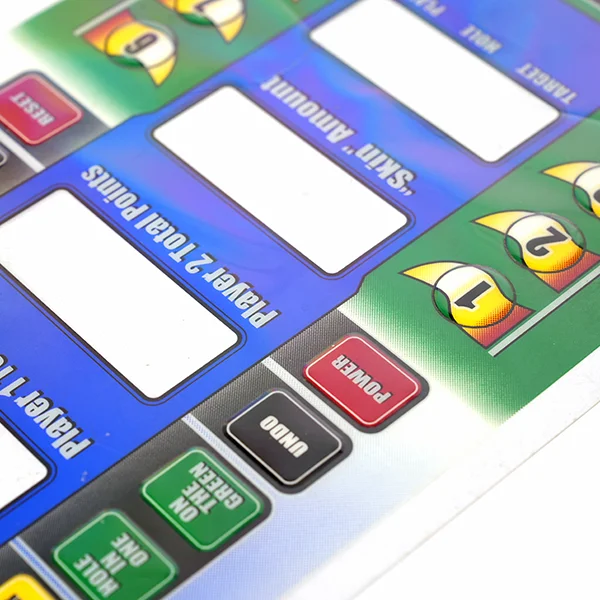

Membrane switch03

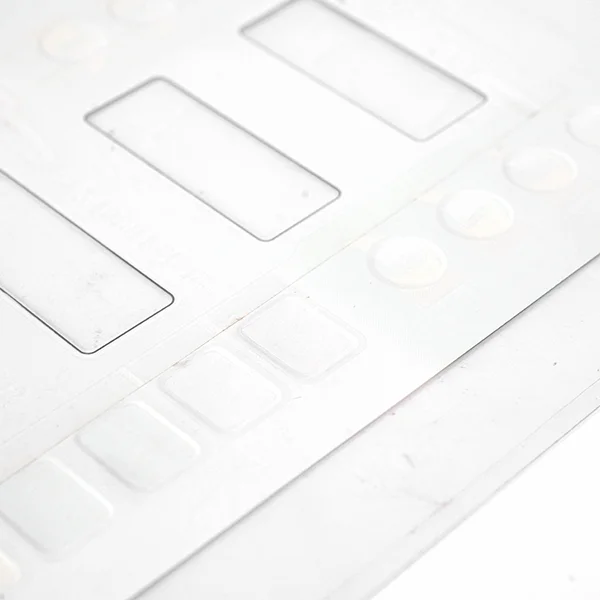

Membrane switch05

Membrane switch in Game PlayStation

A membrane switch, also referred to as a membrane keypad or membrane keypad switch, is a keypad type that employs a flexible membrane to regulate the flow of electricity. These keypads serve as interfaces for user equipment and tool devices, facilitating the transmission of commands between the user and the electronic device in use. Typically, a membrane switch comprises multiple layers, including a visible top overlay that users interact with, a spacer layer, and a circuit layer. The circuit layer contains the electrical contacts essential for the switch’s functionality. When the user presses on the top overlay, it transmits pressure on the circuit layer, completing the electrical circuit and triggering the switch.

  • Material:PET, PC, PMMA, TPU

  • Product dimension:can be customized

  • Manufacturing process:silkscreen/digital printing

  • Features:waterproof, corrosion resistance

  • Applications:various household/commercial appliances, medical/industrial/electronic equipment panels

Basic Parameters of Tactile Membrane Switch
Max. Panel size 600*800mm
Max. Panel size    (with emboss) 400*500mm
Paste silver paste, carbon paste
Ink color red, black, blue, white, yellow, green, purple, etc
Trace width 0.15-0.20mm
LED spec. 0402, 0603, 0805, 1210
Wire length Per customer requirements
Waterproof class IP65
Connector female pin, male pin
Metal dome types triangle, for-legs, circle
Trip force (metal dome) 280g, 340g, 450g
Travel (metal dome) 0.35-0.71
Diameter (metal dome) 8.4mm, 10mm, 12.2mm
Surface treatment  (metal dome) gold plating, nickle plating, stainless
Back adhesive DSMS, 3M, SOKEN
Citcuit board option FPC, PCB, Aluminum
Panel material PET, PC, TPU, PMMA
Uses of Membrane Switch

Why Choose Digital Printing Membrane Switches?

Digital printing membrane switch is a type of product that enable to using AI files to convert digital devices to print product patterns, this way is just like when we print a document using a printer. Compared to traditional screen printing overlays, the biggest benefit that we can get from this method is that it can print gradually changing color using the CYMK colors. Gradient colors always give the product a sense of premium, makes it more beautiful.

In additional, when produce the mass production, digital printing method has some price advantages, and it more cost-effective than screen printing way.

Detail Description

Customer Background:

TechPlay Gaming, a leading player in the gaming accessories industry, specializes in manufacturing high-quality gaming peripherals. Their product range includes controllers, keyboards, and overlays for popular gaming consoles like PlayStation. Seeking to enhance the user experience, TechPlay envisioned incorporating a unique digital printed membrane switch into the design of PlayStation overlays. The challenge was to find a printing solution that could deliver intricate designs and vibrant colors, surpassing the limitations of traditional methods.

Project Challenge:

The specific requirement for the PlayStation overlay involved intricate designs and vibrant colors that couldn’t be achieved through traditional printing methods. TechPlay recognized that digital printing technology was the key, but finding a manufacturer capable of seamlessly integrating this technology into membrane switches posed a challenge.

Our Solutions:

Upon receiving the project details from TechPlay, our sales team engaged in comprehensive discussions to understand the specific design intricacies and color requirements. Collaborating closely with our engineering team, we explored digital printing techniques that could meet the demands of the PlayStation overlay. After rigorous testing and refinement, we successfully produced samples that showcased the desired intricate designs and vibrant colors on the membrane switches.

Customer Feedback:

TechPlay was pleased with the outcome, acknowledging the successful integration of digital printed membrane switches into their PlayStation overlays. The prototypes underwent thorough testing, ensuring that the intricate designs were accurately reproduced, and the colors were vivid and consistent. The positive feedback led to a continued partnership, with TechPlay placing additional orders for these advanced membrane switches to be incorporated into their gaming peripherals. The success of this collaboration highlighted our ability to meet the evolving demands of the gaming industry and further strengthened our position as a reliable partner for innovative gaming accessories.
