What is a backlight membrane switch? LED membrane switch

Backlit membrane switch is a special membrane switch that realizes the backlight function by adding light guide film (LGF) into the structure of membrane switch. This light guide film can convert the point light source of LED lamp into a uniform surface light source, thus providing clear button identification and operation interface in low light environment.

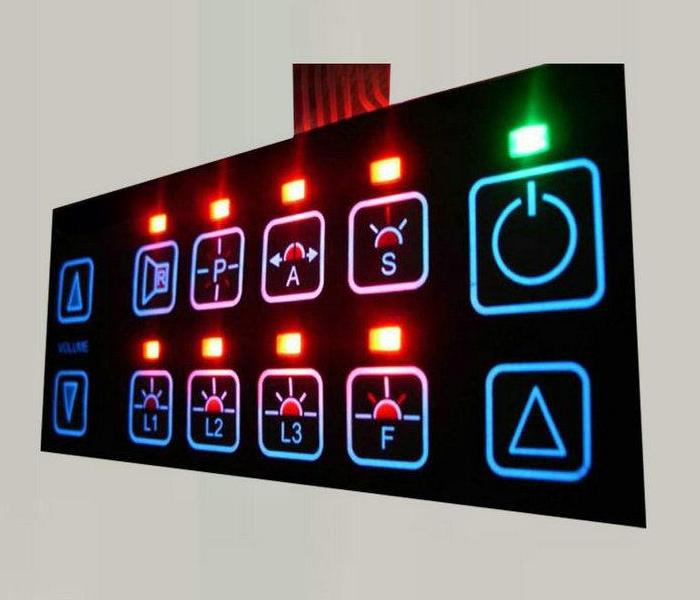

What are LED membrane switches?

LED membrane switches are a type of user interface that uses light-emitting diodes (LEDs) as the light source. These LEDs are embedded beneath the surface of the switch, lighting up icons, symbols, or areas when activated. Unlike traditional membrane switches, LED membrane switches offer individual and localized illumination for feedback or aesthetic purposes.

They are commonly used to indicate power status, mode changes, or to help guide users during operation. While they do provide light, LED membrane switches are different from backlight membrane switches. Instead of spreading light evenly across a panel, they focus light on specific zones. This makes LED-based designs great for targeted feedback but not for full-surface visibility in low-light environments.

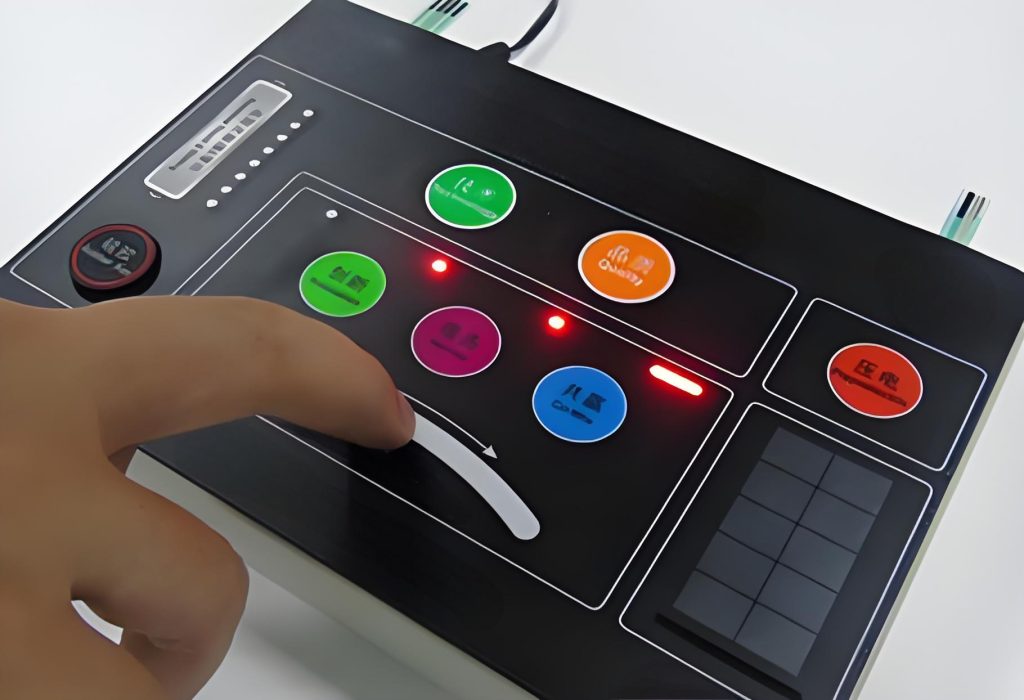

How does a backlit membrane switch work?

Backlight membrane switch operates by integrating a luminous film within its layered construction. This film could be a light guide film (LGF), electroluminescent (EL) sheet, or a fiber optic panel. These films do not emit light on their own like LEDs but instead carry and distribute light across the surface when a light source is placed at the edge.

The result is soft, even lighting that flows under the surface of the switch. The graphic overlay—printed with translucent or selectively transparent inks—allows this light to shine through designated areas. Users see glowing icons, buttons, or background zones that remain clear and legible, even in complete darkness.

Under the surface, tactile domes provide responsive feedback. The lighting system does not interfere with the switch’s feel or action. When a user presses a key, the dome collapses and completes the circuit, while the backlight continues to deliver gentle visibility throughout the session.

Why use backlit switches in dark environments?

Backlight membrane switches are designed to solve a very real problem—operating in the dark. Backlit switch glows softly beneath the surface, highlighting buttons and interface elements. It keeps users confident and reduces downtime caused by errors.

• In medical environments, operators can perform tasks without turning on harsh overhead lights.

• In industrial settings, machines can run through the night without confusing controls.

• In aerospace and automotive applications, backlight ensures safety even under pressure.

How to customize a backlit membrane panel?

Backlight membrane switches are not only functional—they’re flexible. Almost every element of the design can be tailored to meet your needs.

Start by choosing the type of luminous film:

• EL for ultra-thin and flexible lighting;

• LGF for more complex layouts with bright, even glow;

• fiber optics for precise and efficient distribution;

Then decide on the backlight coverage. Do you want full-surface illumination, or only specific icons to glow? You can define lighting zones using translucent windows and printed layers.

Color is another powerful element. Some LGF solutions offer multi-color options, letting you control mood, alert levels, or states with one design.

Pair the lighting with tactile feedback that fits your product:

• Metal domes for crisp clicks;

• rubber domes for silent press;

Overlay materials can be glossy, matte, anti-scratch, or anti-microbial. You can even opt for waterproofing, UV protection, or chemical resistance.

Where are backlight membrane switches used?

Backlight membrane switches find their place in industries where precision and clarity are vital, especially in dark or demanding environments.

In medical equipment, these switches improve visibility on diagnostic machines, patient monitors, and infusion pumps. Professionals can work with confidence, even under low light.

Industrial controls use backlit switches to ensure operator accuracy during night shifts or in dim manufacturing plants. Whether it’s factory equipment or testing systems, lighting makes a difference.

In aerospace and automotive fields, they are essential. The gentle glow prevents distraction while enabling full control.

Public kiosks, vending machines, and ticket dispensers rely on clear visibility—especially when users interact with them at night or in low-light conditions. A backlit switch improves usability and enhances the user experience.

From hospitals to homes, machines to dashboards, backlight membrane switches bring clarity, confidence, and polish.

Are backlit switches waterproof?

Yes, Backlight membrane switches can be designed to meet IP65 or IP67 standards, which means they are protected against water splashes, dust, and even brief submersion. This is achieved by sealing the switch layers tightly with adhesive gaskets and moisture-resistant materials.

Outdoor kiosks, marine equipment, and medical devices often require switches that won’t fail under exposure to liquids or harsh cleaning agents. A waterproof backlight membrane switch holds strong without sacrificing design or tactile response.

Special coatings can add chemical resistance or UV protection, allowing the switch to perform under tough environmental conditions.

So whether it’s a splash of water or constant exposure to humidity, your interface remains intact, functional, and reliable. Waterproof backlight membrane switches keep performance steady—rain or shine.

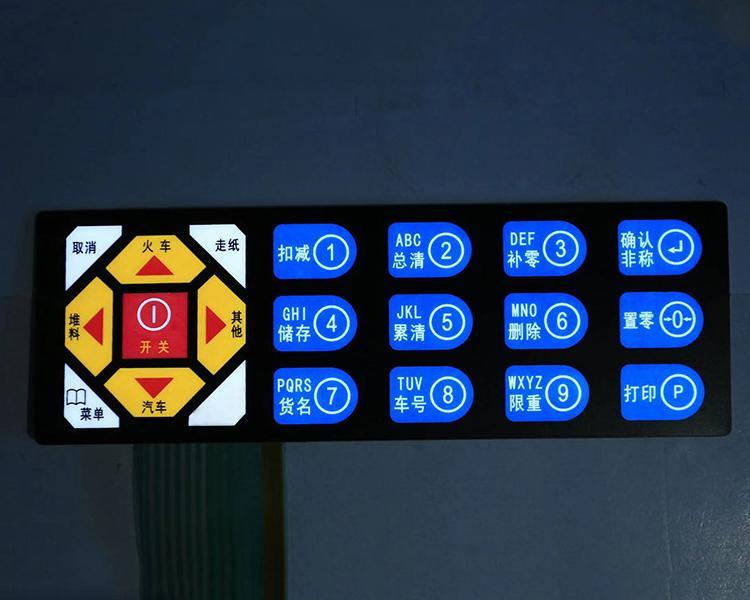

What colors are available for backlighting?

• Choose white for medical devices.

• Pick blue for smart home products or electronics.

• Use green for power indicators or operational zones.

• Go with red for emergency keys or warning areas.

• Try amber in automotive settings to preserve night vision.

Some systems allow multiple color zones in one panel. That means one part of the panel glows blue, another red. Color is not just decoration. It directs attention, informs users, and supports decision-making.

What’s the lifespan of a backlit membrane switch?

The actuation life of a quality membrane switch often reaches over 1 million presses, and with premium domes, even 5 million actuations. Each press remains as responsive as the first.

The backlighting films—whether EL, LGF, or fiber optic—also have strong lifespans. EL typically lasts 3,000 to 8,000 hours, depending on usage and brightness. LGF, when powered by side LEDs, can perform for over 50,000 hours without significant dimming. Fiber optics are known for even longer life with minimal degradation.

Conclusion:

Backlit membrane switches are different from LED membrane switches, backlight membrane switches use films like EL or LGF to spread gentle, uniform light across the panel. This makes them perfect for low-light operation, where visibility and control go hand-in-hand.

They are waterproof, durable, and highly customizable. Their color options, tactile feedback, and lighting control make them ideal for industries ranging from medical to industrial, aerospace to consumer electronics.
