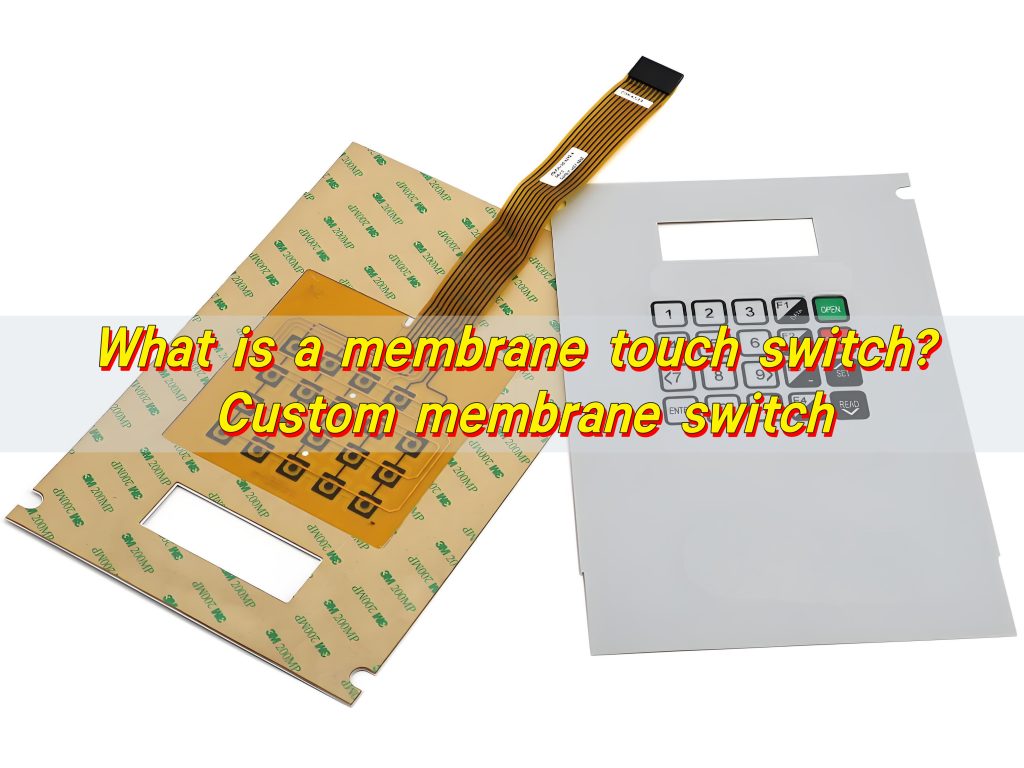

What is a membrane touch switch? Custom membrane switch

Membrane touch switch is a low-profile electrical switch that uses thin, flexible layers to open or close a circuit when pressed. Unlike mechanical switches with moving parts, it relies on pressure to connect two conductive surfaces inside the layers. This design makes it slim, lightweight, and easy to seal against dust and moisture.

What is a membrane switch?

Membrane switch is a type of electrical switch that uses pressure to open or close a circuit. It is different from mechanical switches because it has no moving parts on the outside. Instead, it has thin flexible layers that control the connection.

Most membrane switches have several layers. The top layer is the graphic overlay. This is what you see and touch. It often includes printed icons, letters, or numbers. Beneath that is a spacer that keeps the top layer apart from the circuit. The circuit layer is printed with conductive ink or etched metal. When you press a button, the top layer flexes down to touch the circuit, and the circuit closes.

The construction makes it thin, light, and easy to seal. This is why membrane switches are used in many modern devices.

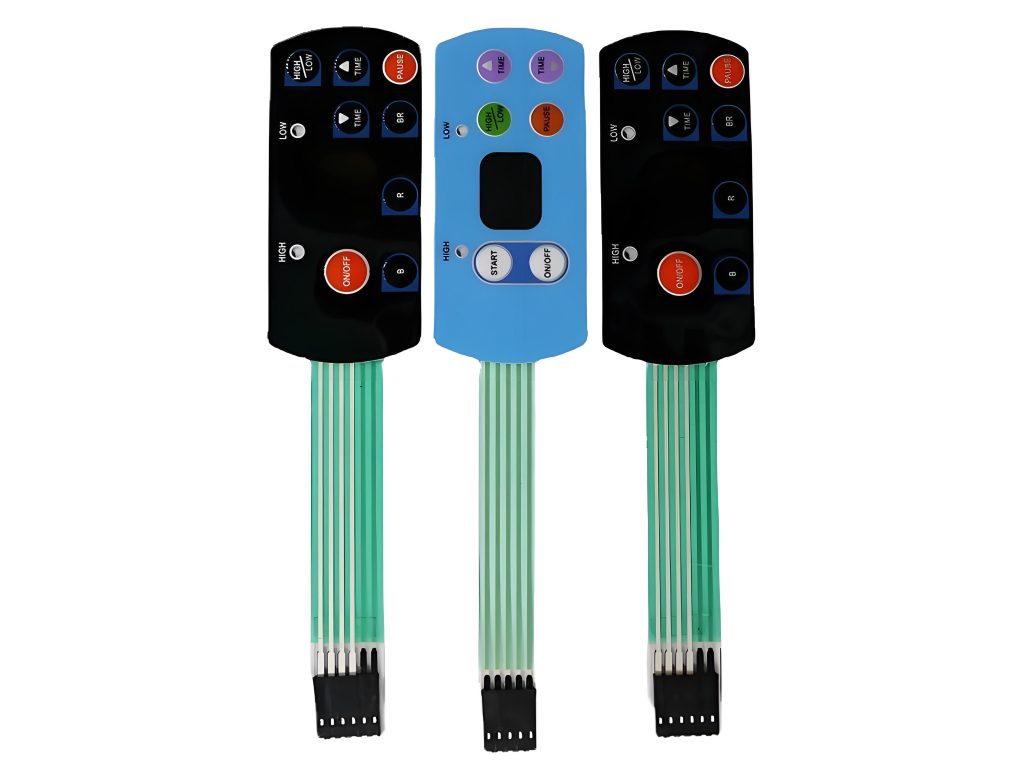

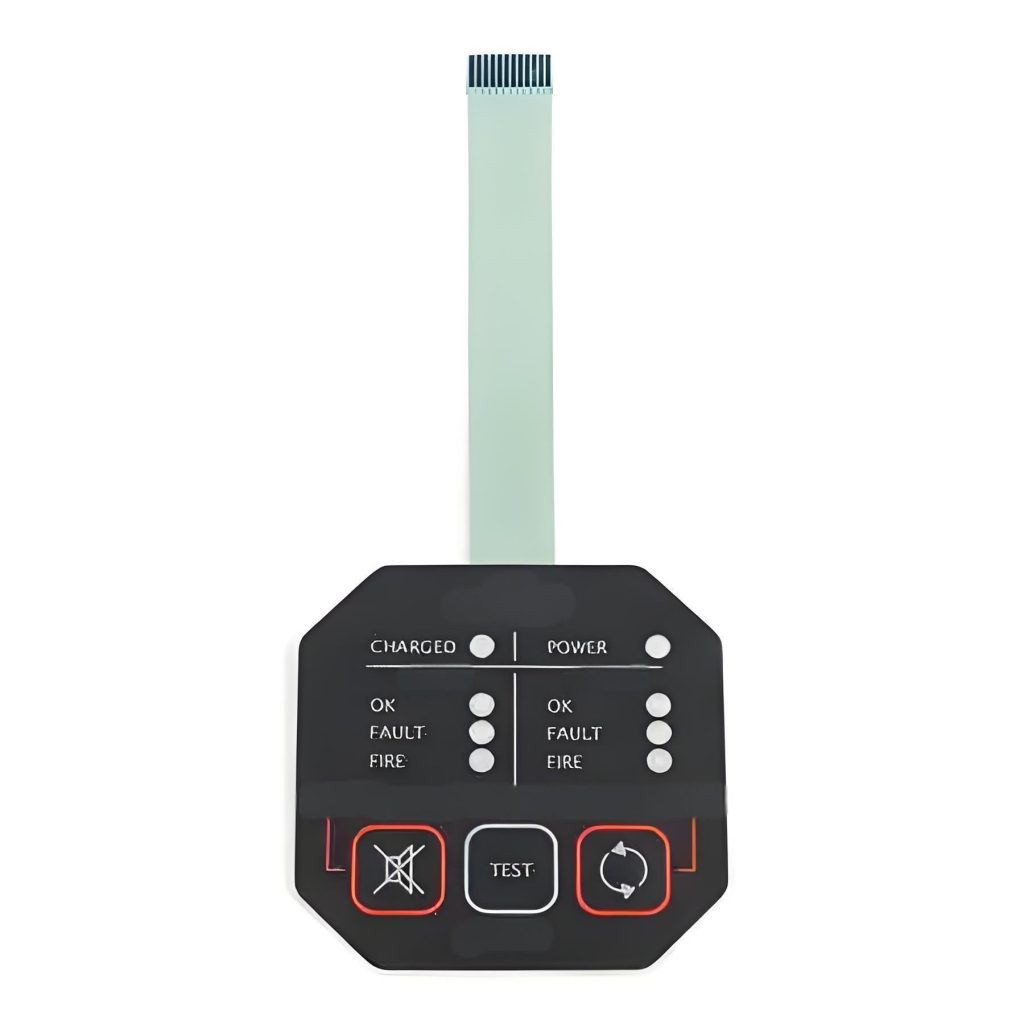

What do membrane switches look like?

They look flat and smooth. Most of them have a sleek surface with printed graphics. You can see them on microwaves, control panels, and remote controls. Unlike mechanical buttons, they do not stick out much.

Some membrane switches are very simple with printed symbols. Others have raised areas for better feel. Many are custom-designed for specific devices. The appearance depends on the application. For example, a medical device switch might use white or blue colors with clear symbols. A consumer device may use bright colors and stylish icons.

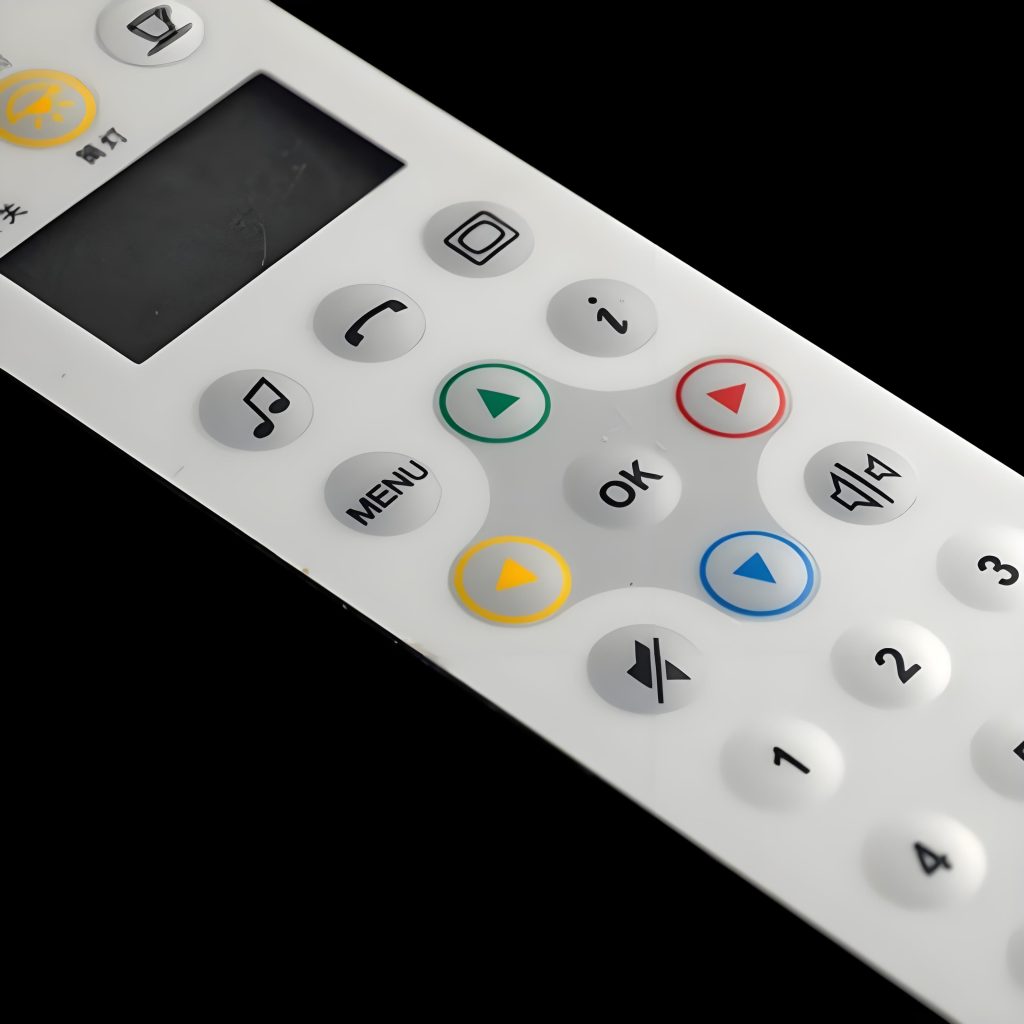

Membrane switches can also include LEDs for lighting. Some have embossed keys to make them easier to find by touch. The overall look is always clean and professional.

What is a membrane switch used for?

Membrane switches are used in many places. They are common in home appliances, medical equipment, and industrial machines. They are also in automotive panels and consumer electronics.

You see them on washing machines, ovens, and coffee makers. They are on diagnostic machines in hospitals. They appear on factory control panels and operator interfaces. They are even in car dashboards and seat control panels.

The reason is simple. They are reliable, thin, and cost-effective. They can also resist moisture, dirt, and chemicals. That makes them perfect for tough environments.

How does a membrane touch switch work?

It works by pressing. When you touch a key, the top layer bends and touches the circuit layer. This closes the circuit, and the signal is sent to the device. When you let go, the layers separate, and the circuit opens again.

Some designs include metal domes. These domes make a click sound and provide tactile feedback. Others use flat layers for silent operation. Both designs work on the same principle: pressing down to connect the circuit.

Can membrane keyboards be tactile?

Yes, they can. A membrane keyboard can include tactile elements like metal domes or embossed keys. These features give a click feel when pressed.

Tactile feedback is important in many applications. In medical and industrial settings, operators need clear response without looking at the panel. A crisp click or bump makes the experience better.

Not all membrane keyboards are tactile. Some are flat for a soft feel. But if the design requires it, tactile response can be added easily.

What is the difference between membrane and tactile switches?

Membrane switch is a type of switch design. A tactile switch describes how the switch feels. Membrane switches can be tactile or non-tactile.

If a membrane switch uses domes or embossing, it feels tactile. If not, it is smooth and silent. A tactile switch, on the other hand, is always designed to give feedback when pressed. Mechanical switches are a good example of tactile switches.

So the difference is in the feedback. Membrane switches are about structure. Tactile switches are about touch response.

What is the difference between a touch switch and a normal switch?

Touch switch works when you touch the surface. Some use capacitance to sense your finger. You do not need to press hard.

Normal switch, like a mechanical button, needs a physical press. It moves parts inside to make the connection.

Membrane touch switch is in between. It needs a light press, but the movement is small. It is still a physical action, not just a finger touch like a capacitive sensor.

What are the disadvantages of membrane touch switches?

They have a few limits. They do not last as long as high-end mechanical switches in some cases. They have less key travel than a traditional keyboard. They may not be ideal for heavy typing or gaming.

However, these are minor for most uses. In industrial, medical, and consumer products, membrane switches offer better sealing, lower cost, and easier cleaning.

Conclusion:

Membrane touch switches are an important part of modern devices. They are thin, light, and easy to customize. They work by pressing flexible layers to complete a circuit. They are used everywhere from home appliances to medical equipment and industrial machines.
